The Zig Zag.

Our answer to what a modern road bike should be. An evolution of the revolution that we started in 2012 with the Mr. Pink, taken to the logical next step through the righteous application of new technology.

We built it to be a ripping fast and efficient machine that shields the rider from road chatter and unnecessary fatigue allowing them to go further, faster, and have more fun.

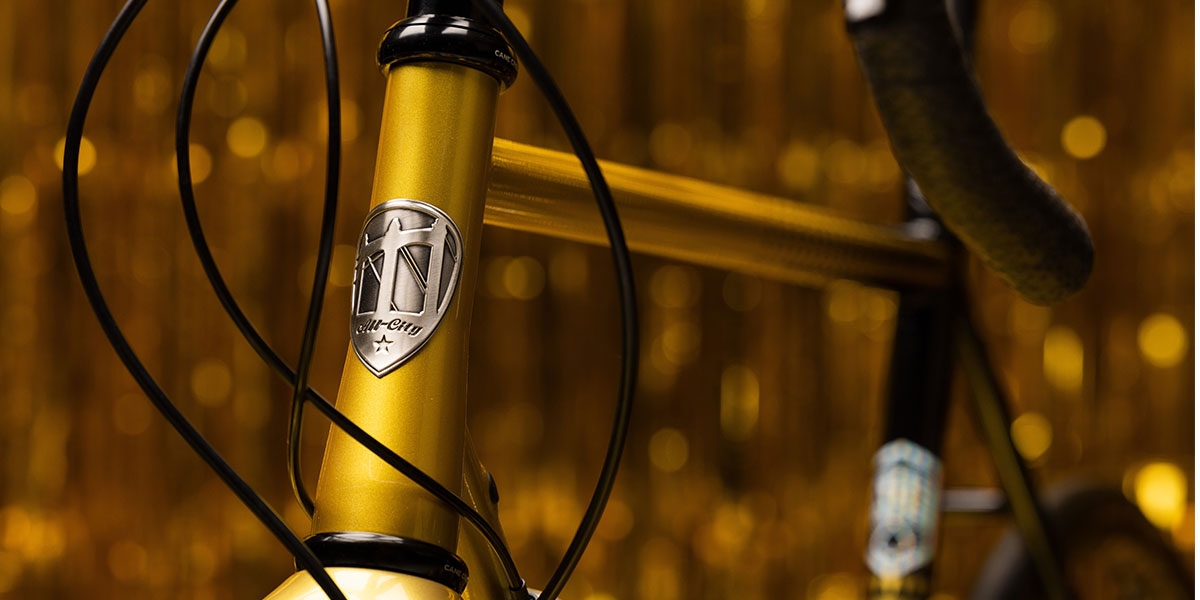

The addition of disc brakes provides confidence in all-weather conditions and allows ultimate control on descents. The thru-axles add stiffness and enhance sprinting prowess, ensuring that no power is wasted. The custom drawn A.C.E. tubeset was created to shave weight and soak up bumps leaving you fresher, longer. Our famed road geometry strikes a perfect balance between aggression and comfort for long days in the saddle or attacks off the front. Because we like to explore the world around us, the bike accommodates up to a 35c tire, making it more than capable of multi-surface riding. You’ll also find all of the All-City attention to detail that you’ve come to expect: a custom head badge, Signature dropouts, Signature brazed-on seat collar, pump peg, two bottle bosses, and fender mounts.

FIND A DEALER

Zig Zag 105

    COMPLETE MSRP $2,699

    Suggested retailers for "" change

    FEATURES

    A.C.E. tubing

    Our proprietary air-hardened, extruded steel tubing that we custom designed for all-road riding and racing.

    E.D. Coating

    In Electrophoretic Deposition, or E.D., coating the frame or fork is placed in a paint bath where an electric charge is applied. This fuses a thin layer of black satin coating to the tubes inside and out. This coating acts as both a rust preventative inside and a primer out.

    Custom Details

    We’re way into the handbuilt touches when it comes to our frames. Which is why you’ll find things like internal cable routing, custom dropouts, lugged crown forks, reinforcements on the bottle bosses, hidden fender mounts, etc.

    Signature Dropouts

    Our new thru-axle investment cast dropouts with removable derailleur hanger.

    FRAME SPEC

    Frame + All-City A.C.E. Air-Hardened, Custom, Extruded steel frame, Custom tapered headtube with external headset
    Derailleur Hanger + Replaceable derailleur hanger; '687' (FS2339)

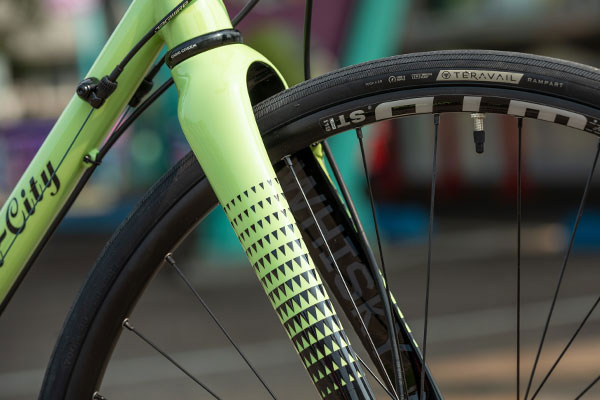

    Fork + Whisky No.9 thru-axle, carbon blades, tapered carbon steerer tube, Post Mount Disc Brake mount
    Rear Spacing + 142mm x 12mm, THRU-AXLE, Ø12 x 167L, TP=1.5, TL=12
    Brake Compatibility + Disc Only, 140mm Minimum, 160 Maximum Rotor Size front and rear
    Seatpost Diameter + 27.2mm
    Steerer Tube / Headset + 1 1/8" - 1 1/2" tappered, Upper: EC34, Lower: EC44, Crown Race 40mm
    Bottom Bracket + 68mm English
    Tire Clearance + 700c x 35mm w/o Fenders; 700c x 32mm w/ Fenders
    Extras + Front & Rear fender mounts, E.D. coated for durability and rust prevention, space for two bottle cages, pump peg

    COMPLETE BUILD

    Headset + Cane Creek 40 Series
    Stem + Whisky No. 7
    Handlebar + Whisky No. 7
    Grips + All-City Super-Cush w/ Locking Alloy All-City End Plugs
    Shifter/Brake Lever + Shimano 105 R7000 w/ Hydro Brakes
    Front Derailleur + Shimano 105 R7000
    Rear Derailleur + Shimano 105 R7000
    Brakeset + Shimano 105 R7000 Flat Mount Calipers w/ 6 bolt SM-RT26 160 rotors
    Crankset + Shimano 105 R7000 52-36
    Bottom Bracket + Shimano RS500
    Seatpost + Whisky No. 7
    Saddle + All-City Gonzo
    Cassette + Shimano R7000 11-32
    Chain + Shimano HG601
    Hubs + All-City Go-Devil 28h
    Rims + WTB ST Light i19
    Tires + Teravail Rampart 700x28 60tpi Light and Supple

    GEOMETRY

    Zig Zag 105 Geometry Line Drawing
    Select up to 3 sizes to view:
    46cm
    49cm
    52cm
    55cm
    58cm
    61cm

    Size 46cm 49cm 52cm 55cm 58cm 61cm
    Head Tube Angle (A) 70 71 72 72 72.5 72.5
    Seat Tube Angle (B) 75.5 74 73.5 73 72.5 72.5
    Top Tube Length (C) 520 530 545 560 580 605
    Seat Tube Length (D) 460 490 520 550 580 610
    Chainstay Length (E) 415 415 415 415 420 420
    Bottom Bracket Drop (F) 70 70 70 70 70 70
    Fork Offset (G) 51 51 51 51 51 51
    Total Fork Length (H) 386 386 386 386 386 386
    Head Tube Length (I) 106 121 140 160.5 185.5 210.5
    Standover (J) 736.9 761.4 787.7 813.4 840.1 866.4
    Wheelbase (K) 1003.3 1006.8 1011.3 1019.35 1043.5 1065.6
    Stack (L) 524 540 562 583 607 631
    Reach (M) 375 377 384 389 400 415
    Handlebar Width 380 400 400 420 440 460
    Stem Length 70 80 90 100 110 110
    Crank Arm Length 165 170 172.5 172.5 175 175
