New Sheriff Front

The New Sherrif was designed ground up in house by All-City and was built to handle the unique stresses and demands of the modern fixed gear rider. BMX inspired internals with a flange design influenced by the famous Campagnolo “sheriff star” hubs of yore.  Don’t worry though, these flanges are plenty strong for whatever you can dish out, and 15mm hollow axles mean no more worries about breakage.  High quality Japanese manufactured sealed bearings live long and roll smooth, and the unique stainless custom mounting hardware allows for installation with either a 15mm box end or 6mm hex.

Highlights:

  • Hub shell made of 6061 T6 aluminum
  • High flange large window design builds a stiffer wheel while keeping weight down
  • Stainless hardware
  • 13 through 15 gauge spoke compatibility
  • Chamfered hub flanges reduce spoke stress
  • Oversized 15mm diameter 6061 T6 aluminum axle
  • High quality Japanese manufactured 6902 sealed bearings
  • Tool Free adjustment, hub bearings are properly loaded when the wheel is installed

Product Specs

Weight:  226 g
Non-Drive Side Center to Flange:
Drive Side Center to Flange:
Non-Drive Side Flange Diameter:
Drive Side Flange Diameter:

Related Resources

Instructions
Track Hub Instructions »

Part Number Color Hub Drilling Front Hub Spacing

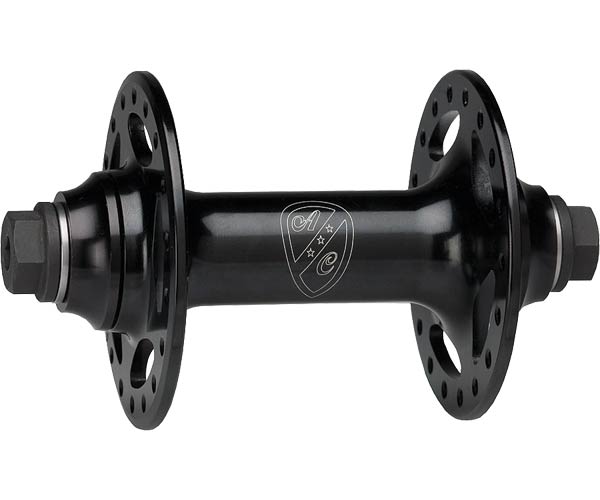

HU4770 Black 36

100mm


HU4774 Black 32

100mm

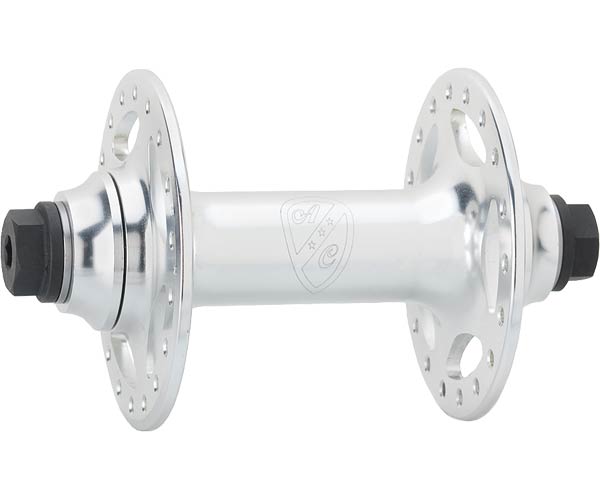

HU4772 High Polish 32

100mm


HU4776 High Polish 36

100mm
