Components
New Sheriff Rear

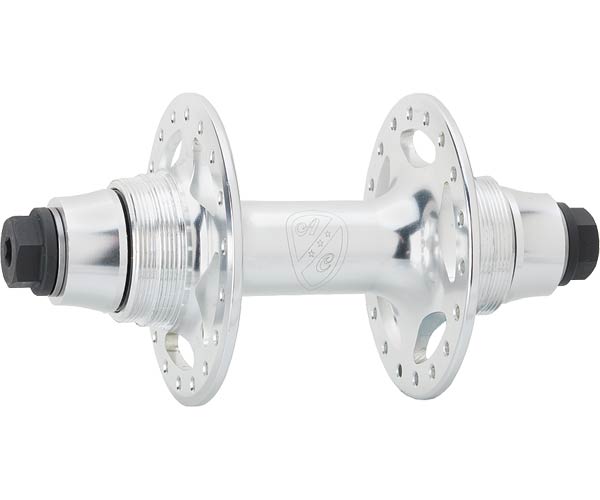

The New Sherrif was designed ground up in house by All-City and was built to handle the unique stresses and demands of the modern fixed gear rider. BMX inspired internals with a flange design influenced by the famous Campagnolo “sheriff star” hubs of yore. Don’t worry though, these flanges are plenty strong for whatever you can dish out, and 15mm hollow axles mean no more worries about breakage. High quality Japanese manufactured sealed bearings live long and roll smooth, and the unique stainless custom mounting hardware allows for installation with either a 15mm box end or 6mm hex.
The 32 hole versions are available in fixed/free and the 36 hole versions will be availble in fixed/fixed and fixed/free configurations
Highlights:
- Hub shell made of 6061 T6 aluminum
- High flange large window design builds a stiffer wheel while keeping weight down
- 13 through 15 gauge spoke compatibility
- Chamfered hub flanges reduce spoke stress
- Oversized 15mm diameter 6061 T6 aluminum axle
- High quality Japanese manufactured 6902 sealed bearings
- Tool Free adjustment, hub bearings are properly loaded when the wheel is installed
Product Specs
Weight: 270 g
Non-Drive Side Center to Flange: 29mm
Drive Side Center to Flange: 29mm
Non-Drive Side Flange Diameter: 62mm
Drive Side Flange Diameter: 62mm
Related Resources
Instructions
New Sheriff Track Hub Instructions »
Blog Posts
New Sheriff’s laced to B43’s »
| Part Number | Color | Hub Drilling | Threading | |
|---|---|---|---|---|
| HU4771 | Black | 32 | Fixed/Free | |
| HU4775 | Black | 36 | Fixed/Fixed | |
| HU4778 | Black | 36 | Fixed/Free | |
| HU4773 | High Polish | 32 | Fixed/Free | |
| HU4777 | High Polish | 36 | Fixed/Fixed |
