Our totally sweet cross fork with the lovely bi-plane crown, in a disc configuration.

Specs

Material: Full 4130 High Quality Chromoly double butted tapered fork blades, bi-plane lugged crown, and matching fork ends

Steerer: 1 1/8"

Axle to Crown Measurement: 395mm

Offset: 45mm

Steerer Tube Length: 300mm

Tire Clearance: 38c

Spacing: 100mm

Part Numbers

Part Number Color Description
FK4723 Black 1 1/8" Black Macho Man Disc Fork
Prev Next
lifestylelifestyle

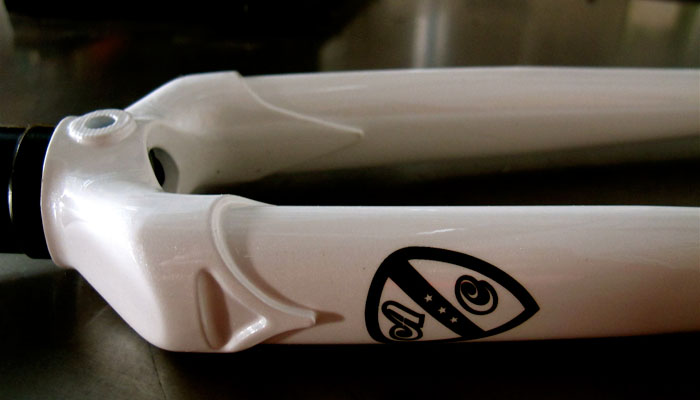

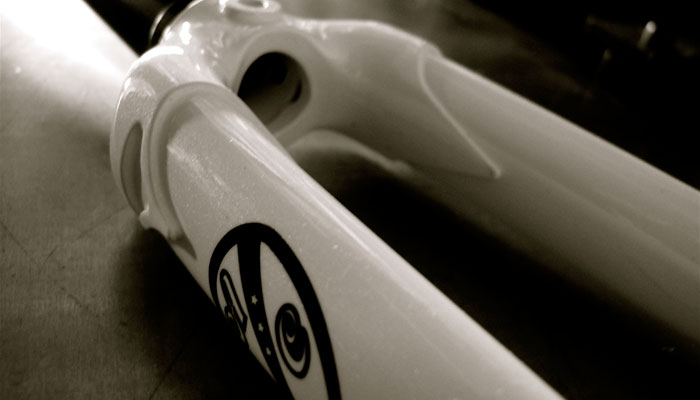

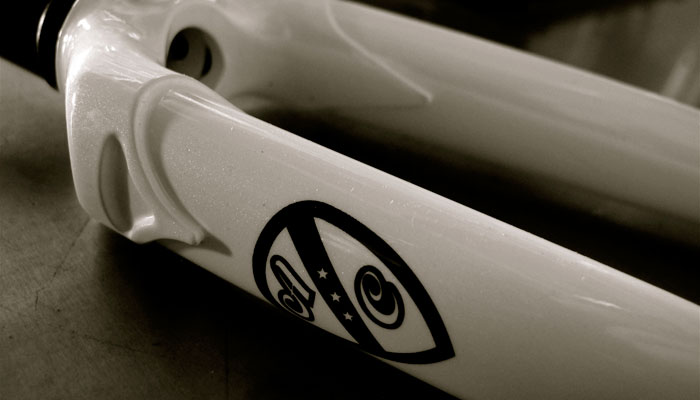

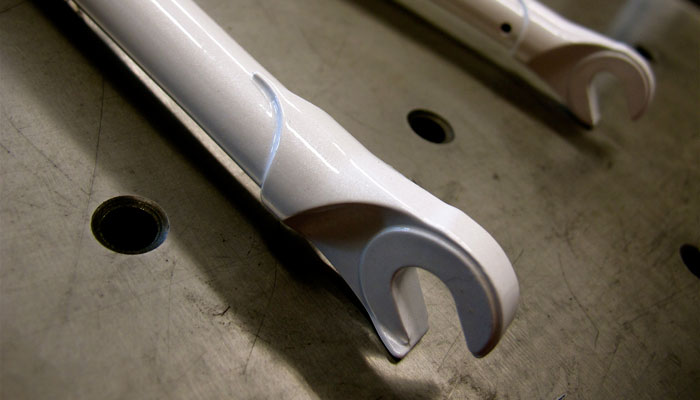

The carbon fork from our awesome Thunderdome frameset, now available separately. Light, stiff, and drilled for a brake.

Photos

Images!
  • thumb

Specs

Material: Carbon Fiber with Aluminum steerer tube

Axle to Crown Measurement: 371mm

Offset: 30mm

Steerer Tube Length: 300mm

Spacing: 100mm

Tire Clearance: 25c

Brakes: Stadard Road

Part Numbers

Part Number Color Description
FK4736 1 1/8" Black Big Block Track Fork
Prev Next
lifestylelifestylelifestylelifestyle

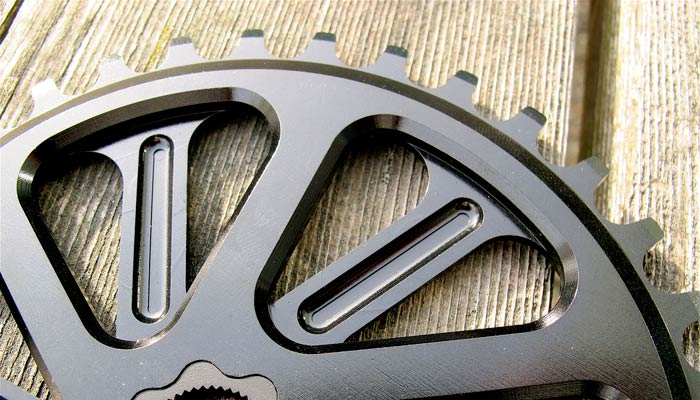

As part of our effforts to offer the parts that support our cross models, we bring you these totally great CNC'd chainrings in a number of cross friendly sizes and BCD's.

These lovelies are non ramped or pinned which makes them perfect for single speed or single ring use, but do just fine in a multi ring setup too.   We've been running them on our bikes for years now and couldn't be happier with the longevity, peformance, or quietness of the tooth profile.

Photos

Images!
  • thumb

Specs

CNC-machined 7075-T6 Aluminum

5-9 speed compatible

Part Numbers

Part Number Color Description
CR2953 Black 36T Black 110 BCD
CR2954 Black 38T Black 110 BCD
CR2955 Black 39T Black 110 BCD
CR2956 Black 42T Black 110 BCD
CR2957 Black 44T Black 110 BCD
CR2958 Black 38T Black 130 BCD
CR2959 Black 40T Black 130 BCD
CR2960 Black 42T Black 130 BCD
Prev Next
lifestylelifestylelifestylelifestylelifestyle

Our lightweight Cross Wizard chainring guard is the perfect addition to a single ring or single speed setup.  While not a full on mtb "bash guard" these are just the thing for keeping your chain on and your teeth intact.

Named after our good friend, the one and only "Cross Wizard!" (you have to say it like that, with the exclamation at the end)

Available in 110 and 130 bolt circle diameters for all your crossy needs.

Photos

Images!
  • thumb

Specs

CNC machined 6061-T6 Aluminum

Part Numbers

Part Number Color Description
CR2950 Black 36T Max 110 BCD
CR2951 Black 44T Max 110 BCD
CR2952 Black 44t Max 130 BCD
Prev Next
lifestylelifestyle

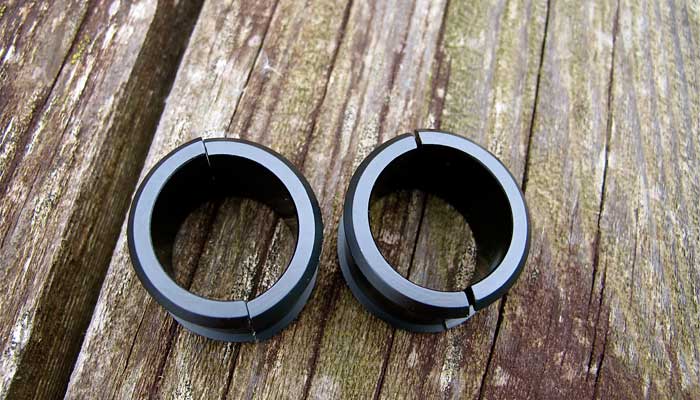

Use these to shim our cross levers down from 31.8 to 26.0.

Photos

Images!
  • thumb

Specs

  • Sold as pair

Part Numbers

Part Number Color Description
BR2921 Black Cross Lever Shims 31.8 - 26.0
Prev Next
lifestylelifestylelifestyle

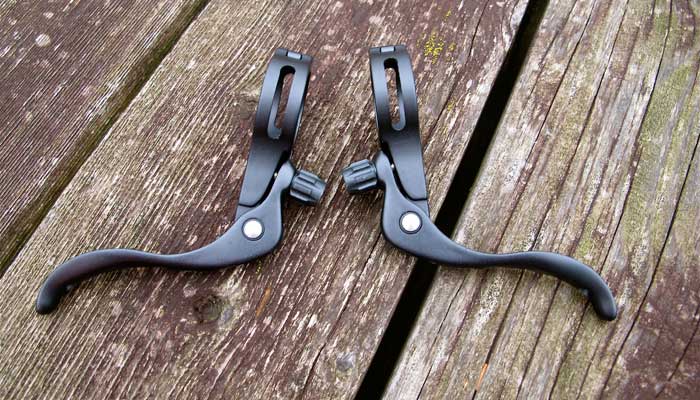

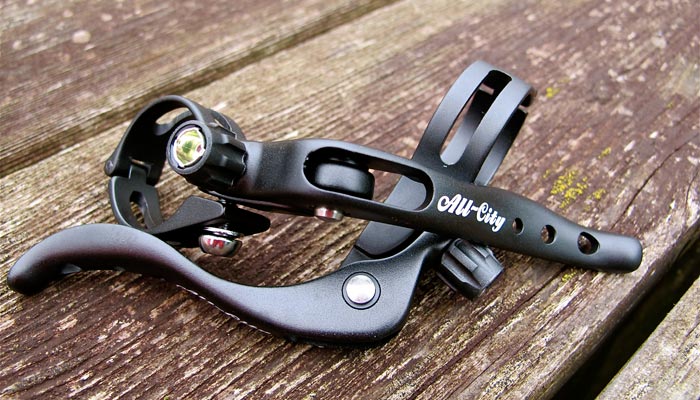

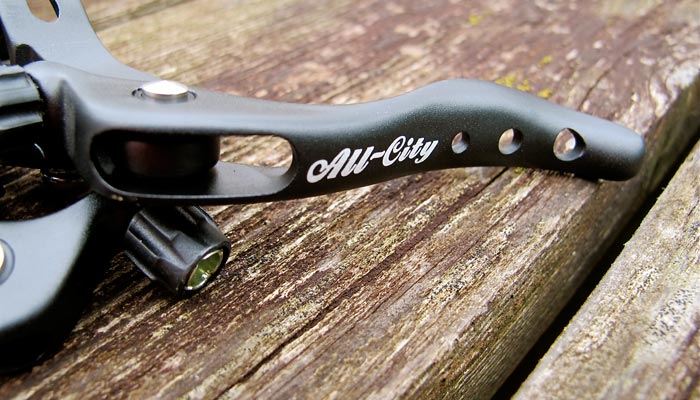

These inline cross brake levers have super smooth Delrin bushings, a hinged clamp, drilled out lever bodies for lightweight and grip, and angled cable routing to make setup and operation a breeze.

Designed for 31.8 handlebars but with our shims (sold separately) will work perfect with 26.0 as well.

Photos

Images!
  • thumb

Specs

  • Delrin Bushings
  • Hinged clamp fits 31.8 bars; shim to 26.0 (sold separately)
  • Angled cable routing
  • Cantilever and caliper brake compatible

Part Numbers

Part Number Color Description
BR2920 Black Inline Cross Levers
Prev Next
lifestylelifestylelifestyle

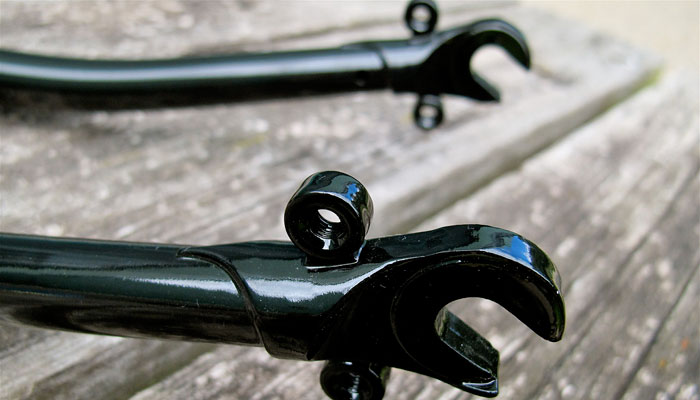

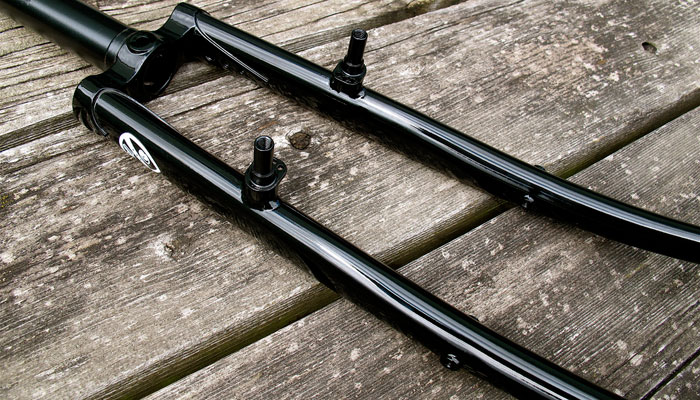

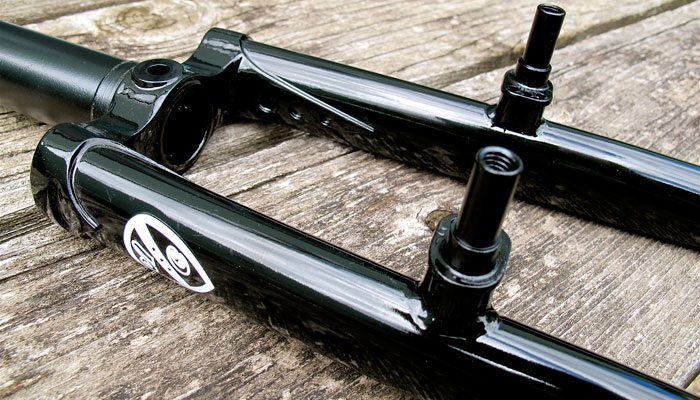

Our beautiful Space Horse fork ready to be mounted on any bike you want to class up or add a front rack to.

It posess' a classic rando bend radius and features double eyelets on the lugged dropouts as well as mid blade mounts, allowing you to use any number of front rack styles.  The entire fork is E.D. dipped for rust proofing, then done up in a nice black powdercoat.

Photos

Images!
  • thumb

Specs

Material: Full 4130 High Quality Chromoly double butted tapered fork blades, lugged crown, and matching fork ends

Steerer: 1 1/8"

Axle to Crown Measurement: 395mm

Offset: 52mm

Steerer Tube Length: 300mm

Tire Clearance: 42c

Spacing: 100mm

Part Numbers

Part Number Color Description
FK4725 Black 1 1/8" Black Space Horse Rando Fork
  • Hub shell made of 6061 T6 aluminum
  • Stuper strong low flange design
  • 13 through 15 gauge spoke compatibility
  • Chamfered hub flanges reduce spoke stress
  • Oversized 15mm diameter steel axle
  • High quality Japanese manufactured 6902 sealed bearings
  • Tool Free adjustment, hub bearings are properly loaded when the hub is installed in the fork

Specs

Weight:  247 g

Non-Drive Side Center to Flange: 34mm
Drive Side Center to Flange: 34mm
Non-Drive Side Flange Diameter: 58mm
Drive Side Flange Diameter: 58 mm

Hub Spacing: 100mm

Part Numbers

Part Number Color Description
Hu4744 Black Deputy Front 36h Black
HU4748 Black Deputy Front 48h Black
Prev Next
lifestyle

The Save The Track Bike (STTB) bar is a traditional drop 31.8 alloy track bar for all your track racing needs.  It's light, pretty, and stiff.

Photos

Images!
  • thumb
  • thumb

Specs

Material: 6061 Aluminum

Reach: 105mm

Drop: 170mm

Part Numbers

Part Number Color Description
HB2925 Black STTB 40cm Black
HB2927 Black STTB 42cm Black

Since the dudes at Holdfast are dear friends of ours, rather than make a copy cat product, we've partnered with them to bring you the AC version of the venerable Holdfast foot retention system.  These are an alternative to traditional clips and straps, and are the jam for freestyle purposes.  They work very well with BMX style pedals.

Photos

Images!
  • thumb
  • thumb

Specs

Made in U.S.A.

Part Numbers

Part Number Color Description
TS4720 Black / Blue Holdfast Black / Blue
TS4721 Black / Grey Holdfast Black / Grey
Prev Next
lifestylelifestylelifestyle

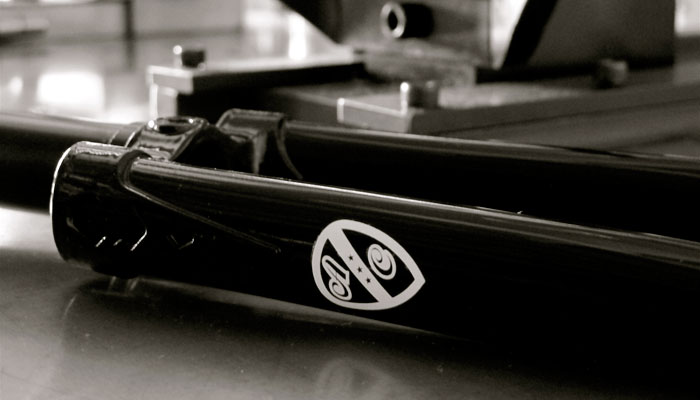

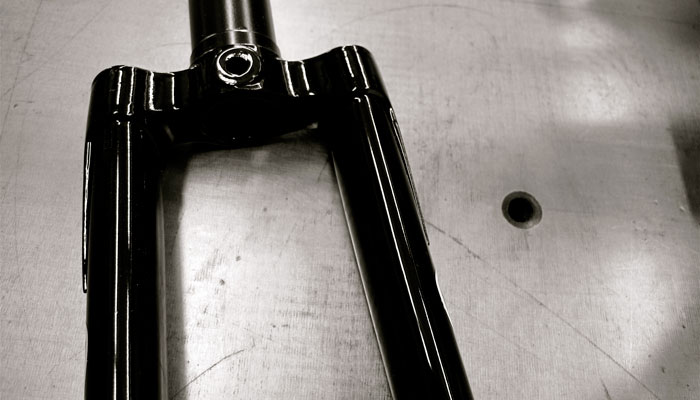

The Mr. Pink fork has a lovely lugged crown and tips to match, hidden fender mounts,  tapered double butted legs, and clearance for 32c tires.

Standard road offset and axle to crown make this an ideal upgrade for any road machine.

The entire fork is E.D. dipped for rust proofing, then done up in a nice black powdercoat.

Photos

Images!
  • thumb

Specs

Material: Full 4130 High Quality Chromoly double butted tapered fork blades, lugged crown, and matching fork ends

Steerer: 1 1/8"

Axle to Crown Measurement: 375mm

Offset: 43mm

Steerer Tube Length: 300mm

Tire Clearance: 32c

Spacing: 100mm

Brakes: Mid Reach

Part Numbers

Part Number Color Description
FK4724 Black 1 1/8" Black Mr. Pink Road Fork
Prev Next
lifestylelifestyle

•Hub shell made of 6061 T6 aluminum
•Low flange design for impact resistance
•13 through 15 gauge spoke compatibility
•Chamfered hub flanges reduce spoke stress
•High quality Japanese manufactured 6902 sealed bearings
•Tool Free adjustment, hub bearings are properly loaded when the wheel is installed

Photos

Images!
  • thumb

Specs

Weight:  288 g (10mm)
                431 g (14mm)

Non-Drive Side Center to Flange: 31.5mm
Drive Side Center to Flange: 31.5mm
Non-Drive Side Flange Diameter: 58mm
Drive Side Flange Diameter:58 mm

Hub Spacing: 120mm

Chainline: 48mm

Part Numbers

Part Number Color Description
HU4746 Black 14mm Deputy 36 hole
HU4745 Black Deputy Rear 36h 10mm Fix / Fix Black
HU4749 Black Deputy Rear 48h Fix / Free Black
HU4749 Black Deptuy Rear 48h Fix / Fix Black
Prev Next
lifestylelifestylelifestylelifestyle

Snap on guides for bikes that don't have any.

Photos

Images!
  • thumb
  • thumb

Specs

Size: 1 1/8"

Material: Steel



Part Numbers

Part Number Color Description
CA2900 Silver 1 1/8" Cable Clamps Silver
CA2901 Black 1 1/8" Cable Clamps Black
CA2902 Red 1 1/8" Cable Clamps Red
CA2903 Gold 1 1/8" Cable Clamps Gold
CA2904 Copper 1 1/8" Cable Clamps Copper

Replacement parts for your New Sheriff hubs.

Part Numbers

Part Number Color Description
HU4794 - Front axle bolts
HU4795 - Rear axle bolts

For Spring 2012 the limited edition New Sheriff color is Gold.  Get some.

Photos

Images!
  • thumb
  • thumb

Specs

Torque Spec on Stainless Bolts: 33nm (25ftlbs)

Spacing: 120mm Track

Part Numbers

Part Number Color Description
Hu4782 Gold New Sheriff Hubset Fixed / Free 32h Gold

The New Sheriff spaced for 130mm road or cross bikes.  Tough enough for anything you can dish out, light enough to race.

*Because we spec stainless bolts for corrosion resistance it's important to pay attention to the torque specs on the bolts (33nm).

Photos

Images!
  • thumb
  • thumb

Specs

Torque Spec on Stainless Bolts: 33nm
Weight:  290 g

Non-Drive Side Center to Flange: 31.5mm
Drive Side Center to Flange: 31.5mm
Non-Drive Side Flange Diameter: 62mm
Drive Side Flange Diameter: 62mm
Chainline: 45mm

Part Numbers

Part Number Color Description
HU4786 Silver New Sheriff 130mm Rear Fixed / Free 32h Silver
HU4784 Black New Sheriff 130mm Rear Fixed / Free 32h Black
Prev Next
lifestyle

Replacement bolts and springs for the Hennepin Bridge and Space Horse dropouts.

Photos

Images!
  • thumb

Part Numbers

Part Number Color Description
FS4700 Silver Replacement Bolts Stainless
  • Hub shell made of 6061 T6 aluminum
  • High flange large window design builds a stiffer wheel while keeping weight down
  • 13 through 15 gauge spoke compatibility
  • Chamfered hub flanges reduce spoke stress
  • Oversized 15mm diameter 6061 T6 aluminum axle
  • High quality Japanese manufactured 6902 sealed bearings
  • Tool Free adjustment, hub bearings are properly loaded when the wheel is installed

Photos

Images!
  • thumb
  • thumb

Specs

Weight:  270 g
Torque Spec on Stainless Bolts: 33nm (25ft lbs)

Non-Drive Side Center to Flange: 29mm
Drive Side Center to Flange: 29mm
Non-Drive Side Flange Diameter: 62mm
Drive Side Flange Diameter: 62mm
Chainline: 42mm

Part Numbers

Part Number Color Description
HU4771 Black New Sheriff Rear Fixed / Free 32h Black
HU4780 Black New Sheriff Rear Fixed / Fixed 32h Black
HU4775 Black New Sheriff Rear Fixed / Fixed 36h Black
HU4773 High Polish New Sheriff Rear Fixed / Free 32h Silver
HU4781 High Polish New Sheriff Rear Fixed / Fixed 32h Silver
HU4777 High Polish New Sheriff Rear Fixed / Fixed 36h Silver
Prev Next
lifestylelifestylelifestylelifestyle
  • Hub shell made of 6061 T6 aluminum
  • High flange large window design builds a stiffer wheel while keeping weight down
  • Stainless hardware
  • 13 through 15 gauge spoke compatibility
  • Chamfered hub flanges reduce spoke stress
  • Oversized 15mm diameter 6061 T6 aluminum axle
  • High quality Japanese manufactured 6902 sealed bearings
  • Tool Free adjustment, hub bearings are properly loaded when the wheel is installed

Photos

Images!
  • thumb
  • thumb

Specs

Weight:  226 g
Torque Spec On Stainless Bolts:  33nm (25ftlbs)

Non-Drive Side Center to Flange: 34mm
Drive Side Center to Flange: 34mm
Non-Drive Side Flange Diameter: 62mm
Drive Side Flange Diameter: 62mm



Part Numbers

Part Number Color Description
HU4770 Black New Sheriff Front 32h Black
HU4774 Black New Sheriff Front 36h Black
HU4772 High Polish New Sheriff Front 32h Silver
HU4776 High Polish New Sheriff Front 36h Silver
Prev Next
lifestylelifestylelifestyle

The Wallner is named after our good buddy and owner of Breakaway Courier, Wayne Wallner.  Wayne’s the raddest dude you know (even if you don’t), and his hospitality has been instrumental in building the “sister city” relationship with Milwaukee that we here in Minneapolis have come to enjoy and rely upon.  His namesake pedal is great for clips and straps or as simply a high quality platform.  The teeth give a nice bite without being overly aggressive, the sealed bearings will give you years of smooth service, and it's got some cool touches such as the threaded toe clip mounts which will keep your clips from coming loose.

  • Sealed Bearings
  • Ability to use 6mm hex or 15mm pedal wrench
  • Threaded pedal cages.  Threaded for M4 (bottle cage) bolts
  • Four windows in pedal body large enough to fit our Deluxe Double Toe Straps
  • Polished Body
  • Concave footbed
  • Dual sided

Photos

Images!
  • thumb
  • thumb
  • thumb

Specs

Weight: 270 g

Bearings: Sealed

Spindle: 9/16"

Dimensions
Cage Length: 76mm
Cage Width: 63mm
Height: 25.4mm

Part Numbers

Part Number Color Description
PD4710 Black Wallner Pro Black
PD4711 Silver Wallner Pro Silver
PD4712 White Wallner Pro White
PD4714 Red Wallner Pro Red
Prev Next
lifestylelifestyle

The NB fork sports a lugged bi-plane fork crown, matching fork ends, tapered double butted legs, and a straight blade design.

Standard cross offset and axle to crown make this an ideal replacement fork for any cross bike.

The entire fork is E.D. dipped for rust proofing, then done up in a nice black powdercoat.  It's lovely, functional, and guaranteed to make you the life of the party.

Photos

Images!
  • thumb
  • thumb

Specs

Material: Full 4130 High Quality Chromoly double butted tapered fork blades, bi-plane lugged crown, and matching fork ends

Steerer: 1 1/8"

Axle to Crown Measurement: 395mm

Offset: 45mm

Steerer Tube Length: 300mm

Tire Clearance: 38c

Spacing: 100mm

Part Numbers

Part Number Color Description
FK4720 Black 1 1/8" Black Nature Boy Cross Fork
Prev Next
lifestylelifestylelifestyle

Leather top with sweet perforations that look real cool & provide grip when your'e sliding your butt around; Ti/CrN alloy rails, a shape that we hope you'll love, and a modest price tag.

It's comfy, good looking, and reasonably priced.

Photos

Images!
  • thumb
  • thumb
  • thumb
  • thumb
  • thumb
  • thumb

Specs

Weight: 290g

Rail Material: CrN/Ti alloy

Cover Material: Perforated Leather

Part Numbers

Part Number Color Description
SA4700 Black Gonzo Saddle Black
SA4701 White Gonzo Saddle White
SA4702 Brown Gonzo Saddle Brown
SA4703 Red Gonzo Saddle Red
SA4704 Blue Gonzo Saddle Blue
SA4705 Silver Gonzo Saddle Silver
Prev Next
lifestylelifestylelifestyle

A super deluxe version of our double toe strap constructed of two strips our new higher quality leather with a layer of non stretching laminate in the middle, topped off with our new non slip buckles.  This my friend is the Cadillac of toe straps: super stiff, super durable, super sexy.

*Be aware that these are considerably thicker than your average double toe strap, make sure the windows in your pedals will accomodate them.  All of our pedal models will work, however the best way to do this is to pull the cages off before threading the strap through.

Photos

Images!
  • thumb
  • thumb
  • thumb

Specs

Weight: 140g pair

Length: 420mm

Thickness: 5.6mm

Part Numbers

Part Number Color Description
TS4710 Black Deluxe Double Toe Strap Black
TS4711 White Deluxe Double Toe Strap White
TS4712 Brown Deluxe Double Toe Strap Brown
TS4713 Black Deluxe Double Toe Strap Black w/ Copper Buckles
TS4714 White Deluxe Double Toe Strap White w/ Copper Buckles

Replacement, upgrade, and small parts for our Standard hubs.

*Please note that we now have solid axles for our Standard hubs for those of you wishing to use them for getting rad

Photos

Images!
  • thumb
  • thumb

Part Numbers

Part Number Color Description
HU4760 Standard front hollow axle
HU4761 Standard rear hollow axle
Hu4762 Standard rear 130mm hollow axle
HU4764 Standard front hub solid axle
Hu4763 Standard rear solid axle
Prev Next
lifestylelifestyle

The matching lockring to our high polish track cogs, they are CNC'd from high quality stainless steel and polished to a near mirror finish.

Photos

Images!
  • thumb

Specs

1.29” x 24 tpi left-hand thread

Part Numbers

Part Number Color Description
FW4780 High Polish High Polish Stainless Lockring
Prev Next
lifestyle

Cnc'd from stainless steel and then polished to a near mirror finish, they run quiet, look awesome, and are surprisingly affordable. The 16 tooth cogs are solid, and the 17 and 18 sport cutouts for weight savings.

Photos

Images!
  • thumb

Specs

Threads: 1.37” x 24 tpi

Size: 1/8”

Part Numbers

Part Number Color Description
FW4774 High Polish 14T Stainless Track Cog
FW4775 High Polish 15T Stainless Track Cog
FW4776 High Polish 16T Stainless Track Cog
FW4777 High Polish 17T Stainless Track Cog
FW4778 High Polish 18T Stainless Track Cog
FW4779 High Polish 19T Stainless Track Cog
Prev Next
lifestylelifestyle

These lockrings are CNC'd from stainless chromoly, they don't cost a ton and work flawlessly.

Photos

Images!
  • thumb

Specs

1.29" x 24 tpi left-hand thread

Part Numbers

Part Number Color Description
FW4750 Silver All-City Track Lockring
FW4751 Black Black Standard Lockring
Prev Next
lifestylelifestyle

Same cog as our polished but in chromoly with a black oxide finish.  A high performing excellent value cog for the baller on a budget.  16 tooth and smaller are solid, 17 and above utilize cutouts for weight savings.

Photos

Images!
  • thumb

Specs

Threads: 1.37" x 24 tpi

Size: 1/8" width

Part Numbers

Part Number Color Description
FW4752 Black 12T Standard Track Cog
FW4753 Black 13T Standard Track Cog
FW4754 Black 14T Standard Track Cog
FW4755 Black 15T Standard Track Cog
FW4756 Black 16T Standard Track Cog
FW4757 Black 17T Standard Track Cog
FW4758 Black 18T Standard Track Cog
FW4759 Black 19T Standard Track Cog
FW4760 Black 20T Standard Track Cog
FW4761 Black 21T Standard Track Cog
FW4762 Black 22T Standard Track Cog
Prev Next
lifestylelifestylelifestylelifestylelifestyle

The beautiful Big Block track fork now available to the aftermarket in both 1" and 1 1/8" sizes.  Lugged crown, matching tips, straight blades, and looks that will make your heart melt.  The perfect replacement fork for any track bike.

Photos

Images!
  • thumb

Specs

Material: Full 4130 High Quality Chromoly tapered fork blades, lugged crown, and matching dropouts

Axle to Crown Measurement: 375mm

Offset: 30mm

Steerer Tube Length: 300mm

Spacing: 100mm

Tire Clearance: 32c

Brakes: Mid Reach

Part Numbers

Part Number Color Description
FK4740 White 1 1/8" White Big Block Track Fork
FK4742 White 1" White Big Block Track Fork
Prev Next
lifestylelifestyle

The classic Star BMX Grips:  harder rubber stars on a softer rubber compound makes for a great no slip grip.  These are a stone cold classic and favorite of the BMX, mountain bike and fixed gear worlds.

Did you know?
All-City Star BMX grips are made in the good ol' USA

Photos

Images!
  • thumb
  • thumb
  • thumb
  • thumb

Specs

Length: 140mm
Weight: 104 g

Made in USA

Part Numbers

Part Number Color Description
HT4740 Black Grips w/ White Stars Star BMX Grips Black / White
HT4741 Red Grips w/ White Stars Star BMX Grips Red / White
HT4745 Black Grips w/ Red Stars Star BMX Grips Black / Red
HT4752 Black Grips w/ Black Stars Star BMX Grips Black / Black
Prev Next
lifestylelifestylelifestylelifestyle

Named for Minneapolis match sprint champ the Robeast Trevor Crayton, these are our classic double strap compatible toe clip.  We've been offering these since the beginning of All-City and they've remained perennial best sellers and favorites.  They look great, work awesome, are plenty durable, and are reasonably priced.

 If you've never tried double strap toe clips, you have no idea how comfortable and secure clips and straps can be.

Photos

Images!
  • thumb
  • thumb

Specs

Weight: 50g

Platform Length
Large:
70mm
Medium: 50mm

Part Numbers

Part Number Color Description
TC4705 Chrome Crayton Double Mtn Clips Chrome Medium
TC4700 Chrome Crayton Double Mtn Clips Chrome Large
TC4706 Black Crayton Double Mtn Clips Black Medium
TC4701 Black Crayton Double Mtn Clips Black Large
TC4702 Red All-City Crayton Double Mtn Clips Red
TC4703 Gold All-City Crayton Double Mtn Clips Gold
Prev Next
lifestylelifestyle

Road style double toe clips (two gates) for those who prefer a classic road shape and feel. If you're looking for classic styling and double strap performance, this is for you.

They feature a smaller 60mm platform than the Crayton's and the single bar design allows the straps to better hug the riders foot, making these the ideal clips for riders with lower volume, narrower, or smaller feet.

Photos

Images!
  • thumb

Specs

Weight: 36g

Platform Length: 60mm

Part Numbers

Part Number Color Description
TC4710 Chrome Swan Road Style Double Toe Clips
Prev Next
lifestylelifestylelifestylelifestyle

The Standard Track Pedal is a great value basic track pedal that was designed to accomodate double straps.  The cages are double sided and removable.
The bearings are not sealed, but I have always had really great luck with them even through Minnesota winters.


Photos

Images!
  • thumb
  • thumb
  • thumb
  • thumb

Specs

Weight: 300 g
Bearings: Non-sealed
Spindle: 9/16"

Dimensions
Cage Length: 78mm
Width: 76mm
Height: 15mm


Part Numbers

Part Number Color Description
PD4720 Black Standard Track Pedals Black
PD4721 Red Standard Track Pedals Red
PD4722 Gold Standard Track Pedals Gold
PD4724 White Standard Track Pedals White
Prev Next
lifestylelifestylelifestyle

Double toe straps represent the ultimate in toe strap comfort and performance.
You won't believe how much more secure and comfortable they are over traditional singles until you've tried them yourself. Suddenly toe clips will make perfect sense, and you'll be riding with newfound confidence. The first time I tried them it was a revelation, and I cannot recommend double toe straps enough.

Photos

Images!
  • thumb
  • thumb
  • thumb

Specs

Weight: 114g

Length: 420mm

Thickness: 3.4mm

Part Numbers

Part Number Color Description
TS4700 Black Standard Double Toe Straps Black
TS4701 White Standard Double Toe Straps White
TS4702 Brown Standard Double Toe Straps Brown
Prev Next
lifestylelifestyle

Our personal favorite toe clip for durability and comfort.  The Classic Plastic doubles are made from super durable plastic, are lightweight, easy to get into, and are the most comfortable clips we've ever tried.  The wide plastic front cage doesn't dig into the top of your foot or make toe clip marks on your shoes.

Photos

Images!
  • thumb
  • thumb

Specs

Weight: 36g
Platform Length:  Medium 60mm
Platform Length:  Large 70mm

Part Numbers

Part Number Color Description
TC4721 Black Classic Plastic Doubles Black Medium
TC4720 Black Classic Plastic Doubles Black Large
TC4723 White Classic Plastic Doubles White Medium
TC4722 White Classic Plastic Doubles White Large
Prev Next
lifestylelifestyle

The Cecil Pro Track pedal was named for a Minnesota local legend who operated the Shakopee Velodrome in the 70’s and early 80’s. It is a traditional sealed bearing low profile track pedal and was designed to accomdate single toe straps. Because of the low profile “Keirin” shape, this is basically a single sided pedal. It’s a great choice if you’re looking for a high quality sealed bearing pedal without the NJS price.

Photos

Images!
  • thumb
  • thumb

Specs

Weight: 238 g
Bearings: Sealed
Spindle: 9/16"

Dimensions
Cage Length: 78mm
Cage Width: 59mm
Height: 14mm, 26mm

Part Numbers

Part Number Color Description
PD4700 Black Cecil Pro Track Pedals Black
PD4704 White Cecil Pro Track Pedals White
Prev Next
lifestylelifestylelifestyle

Classic track grips. Thin diameter, 175mm long, ready to race.

Photos

Images!
  • thumb
  • thumb
  • thumb
  • thumb

Specs

Weight: 70 g
Length: 175mm

Part Numbers

Part Number Color Description
HT4700 Black Standard Track Grips Black
HT4701 Red Standard Track Grips Red
HT4702 White Standard Track Grips White
HT4704 Pink Standard Track Grips Pink
Prev Next
lifestylelifestylelifestylelifestyle

The classic Star BMX grips in long form. Great for drop or riser bar setups.  Unlike traditional track grips which are thinner, these are the same diameter as our BMX grips making them perfect for riders who want lots of hand placement options, but don't like the small diameter of traditional track grips.

Photos

Images!
  • thumb
  • thumb

Specs

Weight: 75 g
Compound: Dual density rubber compound: soft body with harder durometer stars

Part Numbers

Part Number Color Description
HT4720 Black/White Star Track Grips Black / White
HT4721 Red/White Star Track Grips Red / White

The venerable All-City Standard Track hubs in colored pairs.  Limited edition colors will be changing regularly so check back often to see what we've got.

Photos

Images!
  • thumb
  • thumb

Specs

Front
Weight: 204 g
Non-Drive Side Center to Flange: 34 mm
Drive Side Center to Flange: 34 mm
Non-Drive Side Flange Diameter: 62 mm
Drive Side Flange Diameter: 62 mm

Rear
Weight: 282 g
Non-Drive Side Center to Flange: 28 mm
Drive Side Center to Flange: 28 mm
Non-Drive Side Flange Diameter: 62 mm
Drive Side Flange Diameter: 62 mm
Hub Spacing: 120 mm

Part Numbers

Part Number Color Description
Hu4753 Red
HU4754 Gold

Same high quality as our Standard track hubs but in a 130mm rear spacing.  Perfect for road bikes or that vintage 126mm spaced conversion frame that you're lovingly resurrecting.  If you're doing a fixed conversion on a 126 spaced vintage road frame we recommend using the 130 hub instead of a 120.  The logic is that it's less stress on the frame to spread it 2mm on either side rather than squeeze it 3mm on either side.  If you don't buy that logic, there's also the fact that if you're running a 120mm hub on a road frame with a double crankset, you will likely have to run the chainring on the inside position to get a correct chainline.  If you use the 130mm spaced hub you can run your ring on the outside, which looks cleaner.

Photos

Images!
  • thumb
  • thumb

Specs

Weight: 298 g
Non-Drive Side Center to Flange: 30 mm
Drive Side Center to Flange: 30 mm
Non-Drive Side Flange Diameter: 60 mm
Drive Side Flange Diameter: 60 mm
Hub Spacing: 130 mm
Chainline: 45mm

Part Numbers

Part Number Color Description
HU4740 Black Standard 130mm Rear Fixed / Free 32h Black
HU4741 Pewter Standard 130mm Rear Fixed / Free 32h Pewter
Prev Next
lifestylelifestyle

Named for our good friend and 17 year Minneapolis Messenger veteran, Tim Gellerman (3.14 or Pi was his messenger nickname). The 314 Messenger ring is manufactured from the same high grade 7000 series alloy as the 612 Track ring but features the popular 130 BCD.
Maybe you already own a "messenger" crankset and need a ring that won't cost you an arm and a leg, or maybe you've got a road crankset that you're converting to single or fixed use. Either way the 314 is perfect for the application.

Photos

Images!
  • thumb

Specs

Chainring BCD: 130
Chain Compatibility: 1/2" x 1/8"


Part Numbers

Part Number Color Description
CR2939 Black 39T Black Messenger Ring
CR2942 Black 42T Black Messenger Ring
CR2944 Black 44T Black Messenger Ring
CR2946 Black 46T Black Messenger Ring
CR2947 Black 47T Black Messenger Ring
Prev Next
lifestyle

612 track rings are the perfect compliment to any 144BCD crankset. They are made from 7000 series aluminum and feature a durable and lovely anodized finish.

Photos

Images!
  • thumb
  • thumb
  • thumb

Specs

BCD:144
Chain Compatibility: 1/2" x 1/8"


Part Numbers

Part Number Color Description
CR2912 Black 42T Black Track Ring
CR2914 Black 44T Black Track Ring
CR2916 Black 46T Black Track Ring
CR2932 Silver 46T Silver Track Ring
CR2934 White 46t White Track Ring
CR2917 Black 47T Black Track Ring
CR2933 Silver 47T Silver Track Ring
  • High flange hubs with hollow chromoly nutted axle and bolt-on track nuts, 36 hole hubs have solid axle
  • 2 x 6000RS sealed cartridge bearings

Photos

Images!
  • thumb
  • thumb
  • thumb
  • thumb
  • thumb

Specs

Weight: 282 g
Non-Drive Side Center to Flange: 28 mm
Drive Side Center to Flange: 28 mm
Non-Drive Side Flange Diameter: 62 mm
Drive Side Flange Diameter: 62 mm
Hub Spacing: 120 mm
Chainline: 42mm

Part Numbers

Part Number Color Description
HU4720 Black Standard Rear Fixed / Fixed 32h Black
HU4723 White Standard Rear Fixed / Fixed 32h White
HU4710 Black Standard Rear Fixed / Free 32h Black
HU4713 White Standard Rear Fixed / Free 32h White
HU4714 Pewter Standard Rear Fixed / Free 32h Pewter
HU4733 Black Standard Rear Fixed / Free 36h Black
Prev Next
lifestylelifestyle

•High flange hubs with hollow chromoly nutted axle and bolt-on track nuts, 36 hole hubs have solid axle
•2 x 6000RS sealed cartridge bearings

Photos

Images!
  • thumb
  • thumb
  • thumb
  • thumb

Specs

Weight: 204 g
Non-Drive Side Center to Flange: 34 mm
Drive Side Center to Flange: 34 mm
Non-Drive Side Flange Diameter: 62 mm
Drive Side Flange Diameter: 62 mm

Part Numbers

Part Number Color Description
HU4700 Black Standard Front 32h Black
HU4703 White Standard Front 32h White
HU4704 Pewter Standard Front 32h Pewter
HU4732 Black Standard Front 36h Black
Prev Next
lifestylelifestylelifestyle

The 612 Track Crank (six-one-two) is an extremely stiff and strong 144BCD track crank. It is at home on the busy avenues of your city as it is on the boards of the velodrome.  It is a hardworking crank that you can ride the heck out of without worry. Day in day out, on the job or just for fun, the 612 will get you there.

We sweat the details, so the 612 (612 is Minneapolis’ area code) is cold forged instead of melt forged, allowing for a better grain structure in the metal and producing a stronger and more durable part.

It utilizes the classic JIS square taper spindle and comes with a color matched 46 tooth 1/8th chainring. Use it on the street, use it on the boards. Whatever you throw at it, the 612 Track Crank can handle.

Photos

Images!
  • thumb
  • thumb
  • thumb

Specs

Recommended Spindle Length: 110mm
Spindle Interface Type: Square Taper JIS
Chainring BCD: 144
Bolt Pattern: 5-Bolt
Chain Compatibility: 1/2" x 1/8"
Weight: 726.0g w/ring and bolts

Part Numbers

Part Number Color Description
CR2900 Black 612 Track Crank 165mm Black
CR2902 Black 612 Track Crank 170mm Black
CR2908 Silver 612 Track Crank Silver 165mm
CR2909 Silver 612 Track Crank Silver 170mm
CR2910 White 612 Track Crank White 165mm
CR2911 White 612 Track Crank White 170mm

The Nature Boy 853 is Real and Coming this Fall

August 27, 2014 | Jeff

0 Comments

Yes, it's real, and it's stunning. The wait will soon be over for those of you hoping that we would apply some Macho King magic to our beloved single speed disc platform.

Read Post »
