Dropout Frameset

If the Big Block is our dream trackie then the Dropout is our ideal bike for all around mayhem and alley exploring.  However you choose to build it up:  fixed brakeless, two brakes and a freewheel, coaster brakes, polo, dirt, etc.  The Dropout is a platform for pretty much anything you want to do that involves 700c, large tires and hard riding.  It can handle trails, jumps, errands, bars, hardcourt, messengering, whatever.  It's the ultimate get around, bash around, knock around city machine.  It's fast, fun, and comfortable.

The Dropout comes with all of our standard hallmarks, custom headbadge, signature dropouts with built in tensioners and thoughtful design.   It also sports a machined headtube that takes a Campy 45/45 internal headset because good quality headsets are available at very reasonable prices in this standard, and BMX bikes have proven its toughness and reliability.  Instead of paint this baby is ED coated for rust prevention and then powdercoated for ultimate finish durability.   The 990 BMX studs are removable, as is the rear brake cable routing.

In short the Dropout is an extremely capable urban platform that can be built up in a myriad of configurations to suit your riding style and needs.  There are a ton of ways to have fun on this bike.

Features

Dropout
left right

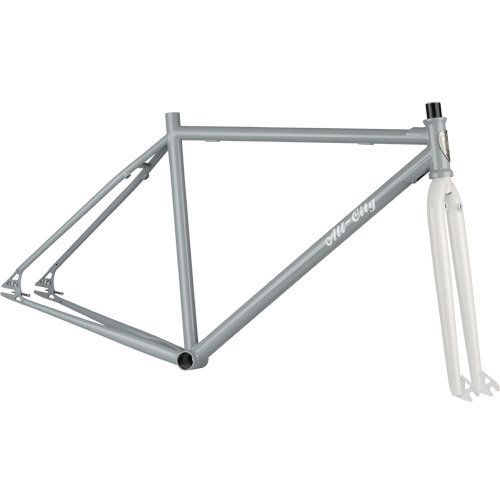

Frame

Frame

100% full 4130 ChroMoly steel. Double butted down, top, and seat tubes. Top and down tube gussets at the head tube.

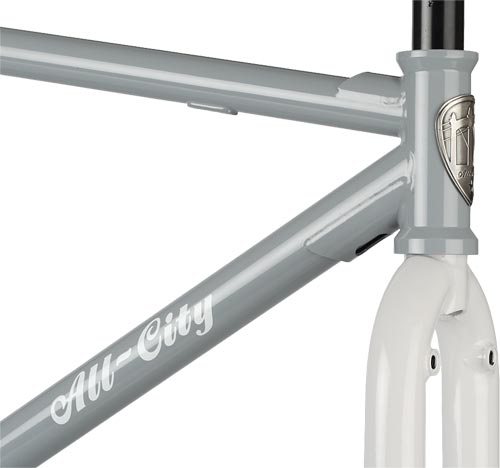

Fork

Fork

Fully Heat treated 4130 ChroMoly tapered fork blades and steerer tube, custom fork ends with integrated lawyer tabs.

Internal Headset

Campy 45/45. It's hard to argue with any standard with the word "Campy" in it.

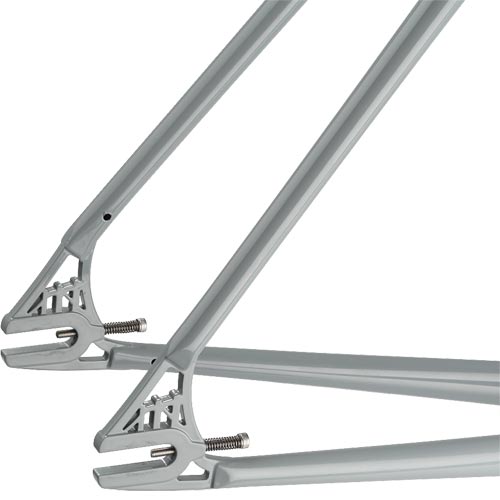

Signature Dropouts

Signature Dropouts

4130 investment cast AC signature dropouts featuring built in tensioners.

Steel tubing

Steel is the only choice for a bike that you can ride all day and beat the crap out of in total comfort.

Freestyle Geometry

A hyrbid of track, BMX, and mountain which is comfortable enough to ride all day, gives plenty of bar spin clearance, minimal toe overlap, and provides a nice platform for bunny hops. It sliders like a dream, and puts smiles on children's faces.

Tire clearance

38c's in the frame with the wheel slammed all the way forward in the dropout (pull it back for more clearance), 47c's in the fork

E.D. Finish

The entire bike is E.D. coated inside and out. E.D. coating not only improves the quality and durability of the paint, but is the best rust proofing agent going. With the E.D. coating there is no need to Frame Saver the bike, it’s already done for you.

Photos

  • flickr
  • flickr
  • flickr
  • flickr
  • flickr
  • flickr
  • flickr
  • flickr

Build Specs

Head Set: Campy 45/45 standard

Bottom Bracket: 68mm

Rear Spacing: 120mm

Seat Post: 27.2

Brakes: 990 BMX mounts with removable studs

Dropout Hardware: M4 x 0.8 x 40mm full thread

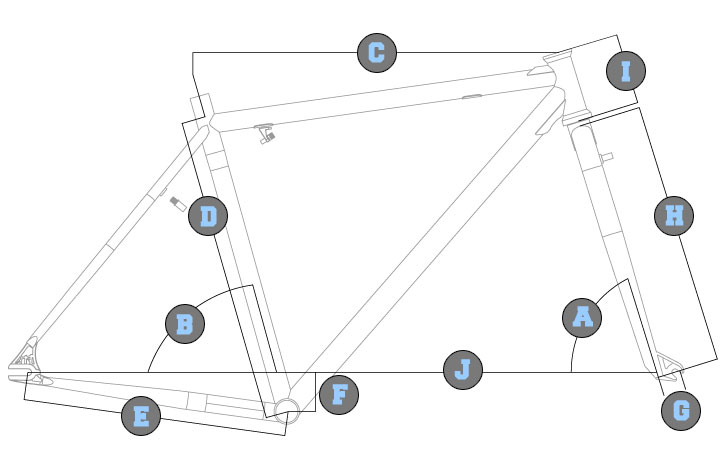

Geometry

Geometry
SizeSmallMediumLarge
(A)Head Tube Angle73.073.573.5
(B)Seat Tube Angle74.574.073.5
(C)Top Tube Length565585610
(D)Seat Tube Length470510560
(E)Chainstay Length400400400
(F)Bottom Bracket Drop606060
(G)Fork Offset303030
(H)Total Fork Length410410410
(I)Head Tube Length110120130
(J)Wheelbase9899991019

Part Numbers

Part Number Size Color Description
FM4715 Large Countertop Green
FM4714 Medium Countertop Green
FM4713 Small Countertop Green
FM4712 Large Shades of Grey
FM4711 Medium Shades of Grey
FM4710 Small Shades of Grey
Carney8(2)[1] Barge 1 DSC_0406 - Version 2 dropout 003 IMG_0484[1] barge 3[1] IMG_0480[1] 4246604359_0a441cf81e_b[1] 4247378730_4ee739b791_b[1] 4246606647_c42d9c1887_b[1]
See more photos of the Dropout in our Flickr gallery.
